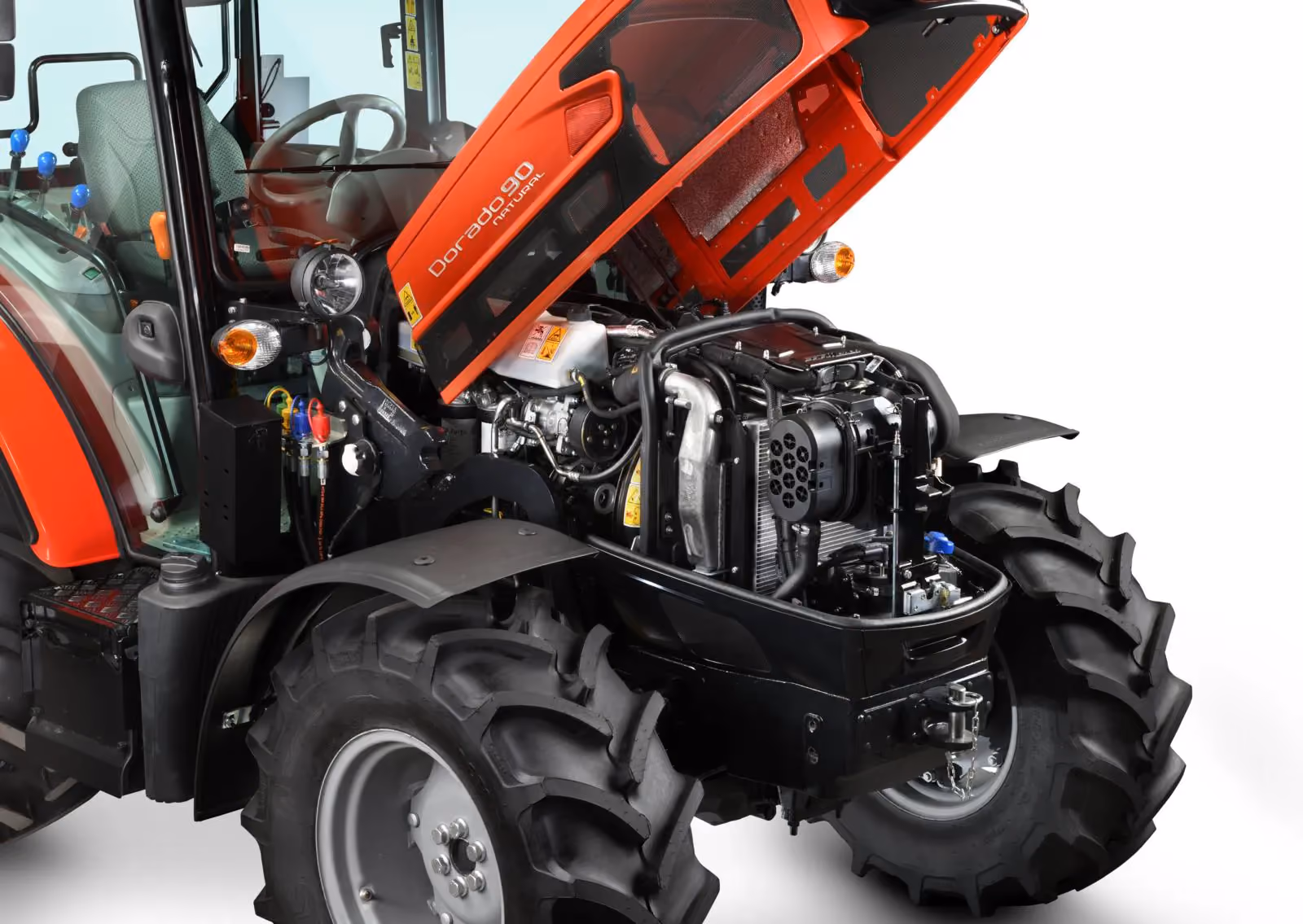

ENGINE

An engine conceived for farming. In day to day use, the difference this makes is clear!

The Dorado Natural family is equipped with advanced 3 cylinder FARMotion 35 engines with power outputs from 66 to 102 HP. These are compact, reliable and efficient maintenance with minimal maintenance. 2,000 bar Common Rail injection and turbo-intercooler forced induction ensure outstanding performance, with practically constant power delivery over a wide range of engine speeds, impressive torque right from the bottom end of the rev rage and low fuel consumption. Thanks to electronically controlled external EGR exhaust gas recirculation combine with a DOC+DPF (70-80 models) or DOC+DPF+SCR (90-100 models), FARMotion 35 engines comply with Stage V emissions control regulations.

TRANSMISSION

The Dorado Natural lets you set the pace you need in the field.

For even greater versatility, efficiency and practicality, Dorado Natural tractors are offered with a choice of several transmission configurations. The standard variant is based on a 5-speed gearbox with 3 ranges providing a total of 15+15 speeds. A mechanical underdrive - which doubles the number of forward speeds is also available, while the gearbox variants fitted with PowerShuttle can be equipped even with a Hi-Lo 2-powershift steps. All transmission variants allow a top speed of 40 km/h at just 1,800 rpm (with 420/70 R30 tyres). All Dorado Natural fitted with PowerShuttle, are fitted as standard with SenseClutch modulation device, ComfortClutch button on gear lever and Stop&Go function. Other standard features on Dorado Natural tractors are electrohydraulically engaged all-wheel drive and front and rear differential locks.

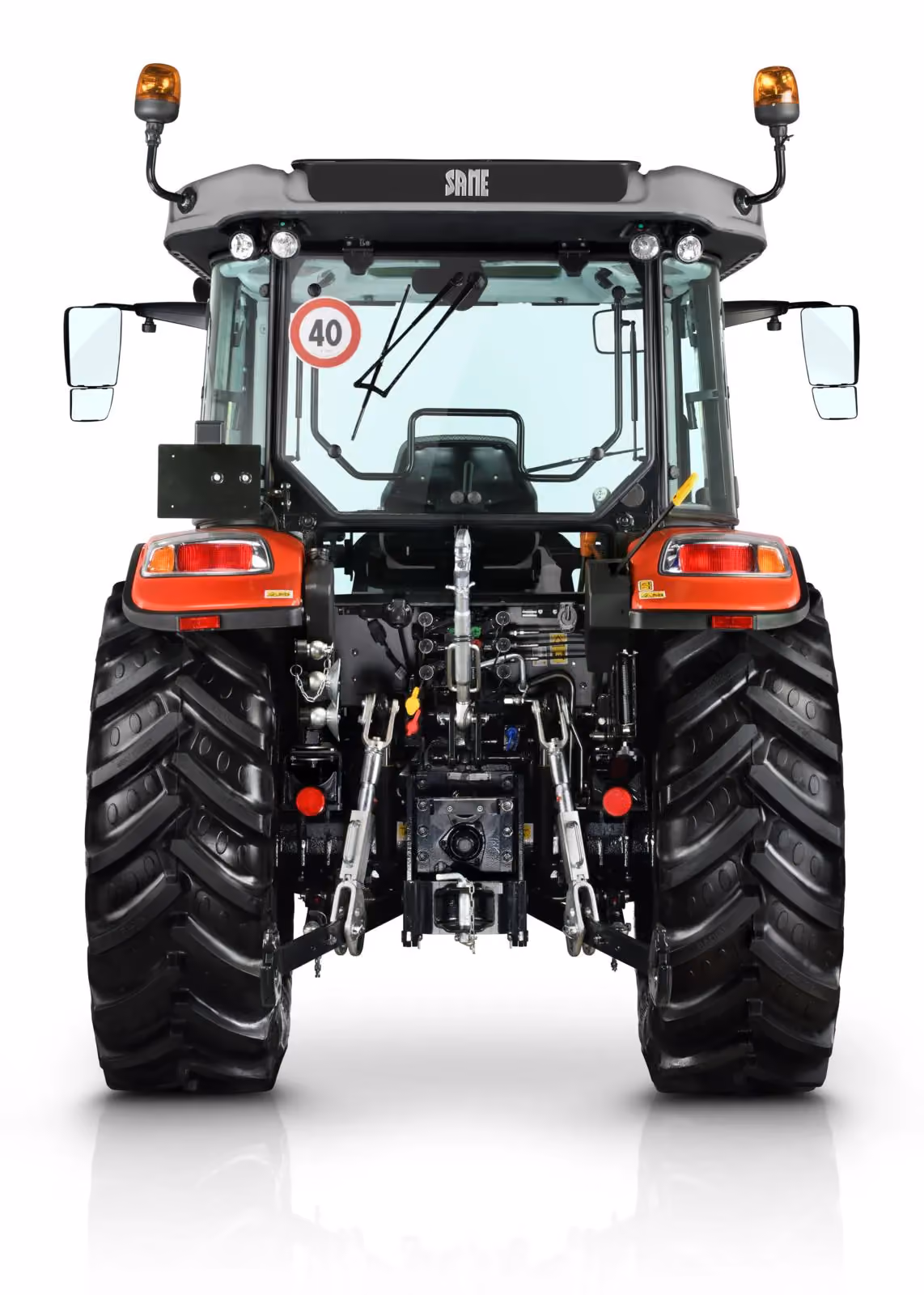

HYDRAULIC SYSTEM

Everything you need, and more.

For maximum productivity when working with implements, the Dorado Natural family is equipped with a 56 l/min pump which in addition to the lift, also delivers oil to the 6-way mechanically controlled rear distributors. For impeccably smooth steering action even at the lowest engine speeds, the steering circuit is fed by a dedicated, separate 20 l/min pump. The rear lift, with the legendary efficiency typical of a SAME mechanically controlled unit, has a maximum capacity of 3,500 kg. In addition is now available the EasyLift control that allows to raise and lower the implements using a single button on the consolle.

PTO

The top in terms of versatility.

The PTO comes as standard with 540 rpm and 540 ECO speed modes, but a 1,000 rpm mode or groundspeed PTO can also be added as an option. The dedicated clutch is mechanically engaged by means of a handy lever, so it’s very easy to insert it gradually.

BRAKES

Simply safe in all situations.

All new Dorado Natural models come with all-wheel drive and wet disc brakes on all four wheels. A selector valve ensures that the braking force is distributed across the individual wheels. When both brake pedals are depressed, all four wheels are braked. When the left-hand pedal is depressed, the rear-left wheel is braked. When the right-hand pedal is depressed, the rear-right wheel is braked. This provides maximum safety in all situations. A hydraulic trailer brake is available on request (country-specific). The front axle was developed by SAME specially for this horsepower class. The four-wheel drive system and 100% differential lock can be electrohydraulically operated at the touch of a button. The 55° steering angle guarantees maximum manoeuvrability.

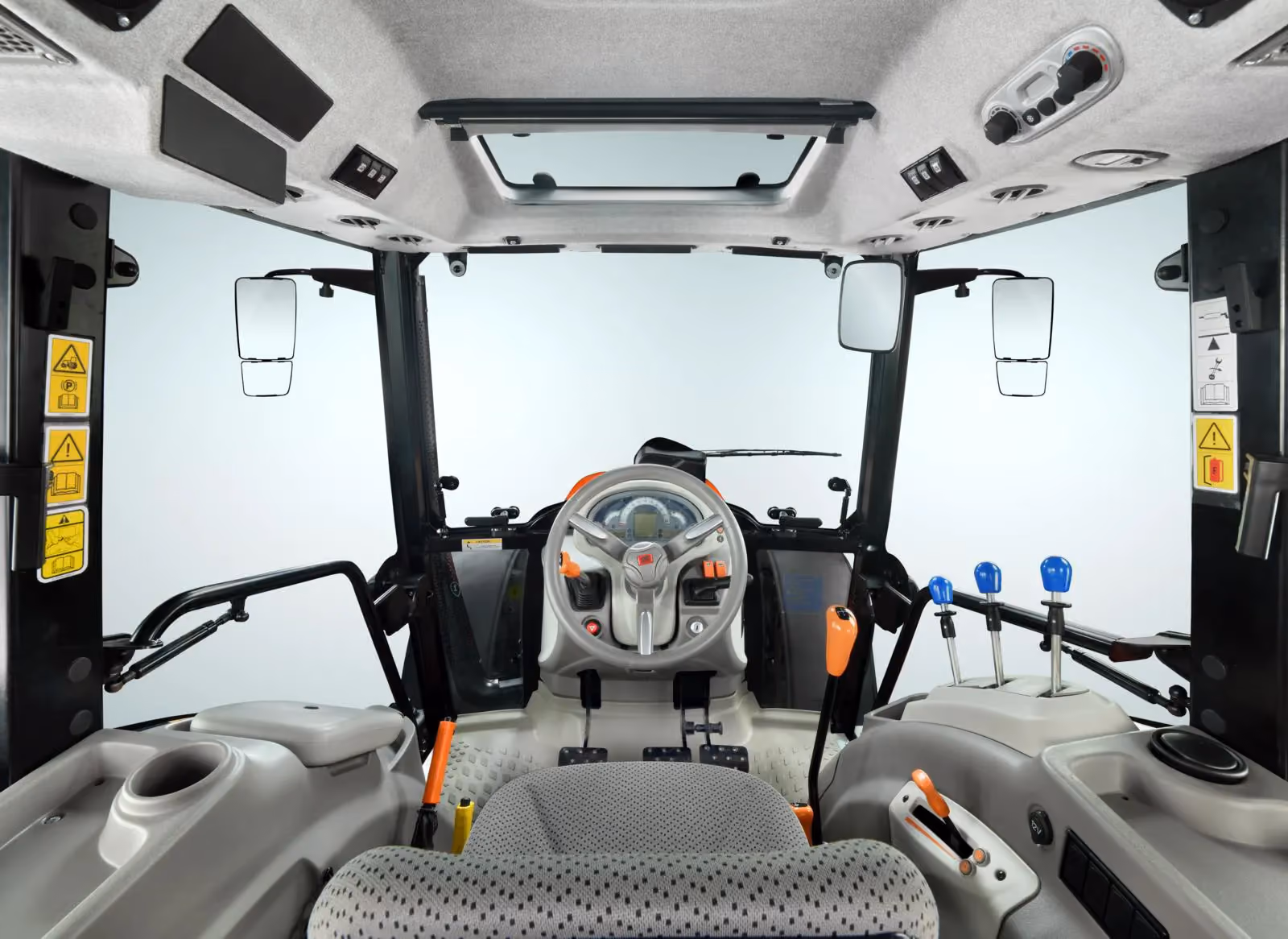

CABIN

Top class comfort.

Painstaking design and development have given the Dorado Natural family a comfortable and ergonomic cab, with excellent all-round visibility, mechanically sprung (or, as an option, air-sprung) seat suspension adjustable effectively for the weight of the driver, and intelligently organised controls. The new analogue/digital display moves together with the adjustable rake steering column to ensure that all the main operating parameters of the machine are clearly visible at all times. A panoramic roof is also available which significantly improves upward visibility, for even greater safety when working with overhead loads.
